SPECIFICATIONS

Auto Leveling: Yes

Bed Temp: 90

Brand Name: IdeaFormer

CE Certification: Yes

Certification: CE

Consumables Diameter: 1.75mm

File Format: GCode

Fliament: PLA/PETG/ABS/TPU/Wood.etc

High-concerned chemical: None

IDEAFORMER Model: IR3V2

Interface Type: SD

IsWi-Fi/BluetoothSupport: Yes

Language: English

Maximum Print Size: 250*250*unlimited mm

Maximum Printing Speed: 400mm/s

Maximum Working Speed: 400mm/S

Molding Technology: FDM

Nozzle Diameter: 0.4mm

Operating System: Windows,Linus,Mac

Origin: Mainland China

Power Supply: 110V/220V AC

Precision: ±0.2mm

Printing Speed: 200mm/s

Slice Software: Ideamaker

Slice Thickness: 0.1-0.4mm

Wireless Connectivity: Wi-Fi

Description

Specification

IR3 V2 Belt Printer advantages

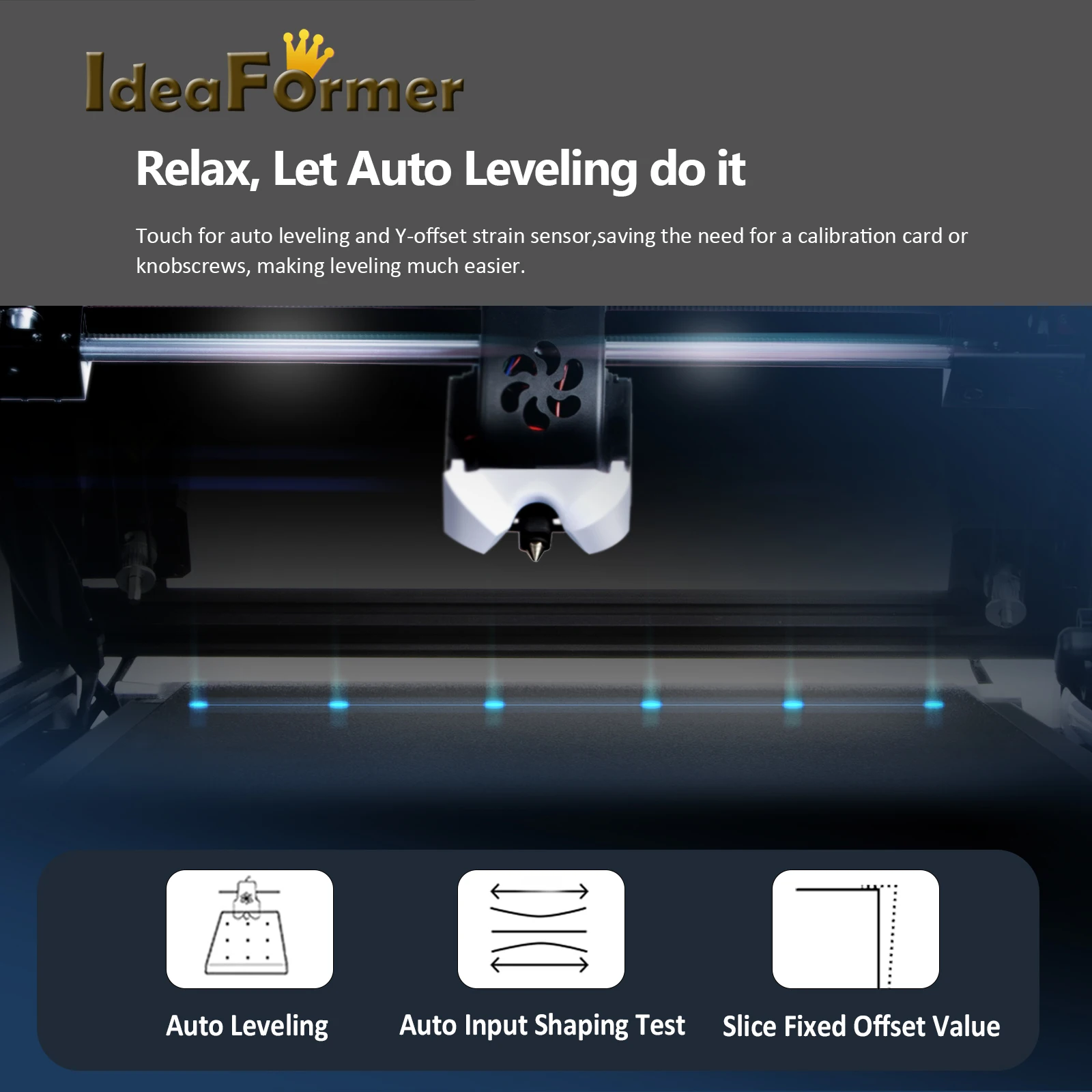

1，100% auto leveling by machine after assembled. Print head with senser, it will detect the distance with the bed platfrom, and matched with the slice setting Y offset -0.1 to -0.2mm, then it will sticker well on the belt.

2, Metal conveyor belt. Mainly coated with PEI. Printing area is warm, it is good for sticker models on, and it is strong hardness, High models on it will not shaking. Detach model area is cold, it is easy to sepreate the model from the conveyor belt.

3, Klipper firmware(Fully Open Source)/Fast printing. Printing speed is over 400+ mm/s. Powered by the open-source Klipper systemklipper firmware and designed the xy axis move very smooth, z axis is powerful with gearbox and we put it inside the roller.

4, Lost step detect. While printing a model, there have many reasons cause a layer shift/lost step. Such as x y z axis moving wrong (dust or something on the moving system by a mistake); models didn't sticker well, expecially for this 45 degree printing, each layer need touched the belt (filament temperature setting wrong, or the models is too complicatedand didn't added support correctly); print speed too fast, etc. while lost step happened, it may cause the print head hitting the edge of the printer or scratch the belt, with this detect function, printer will stop print while these situation happened. So it can protect the print head and the conveyor belt. then you need check the reason for this lost step.

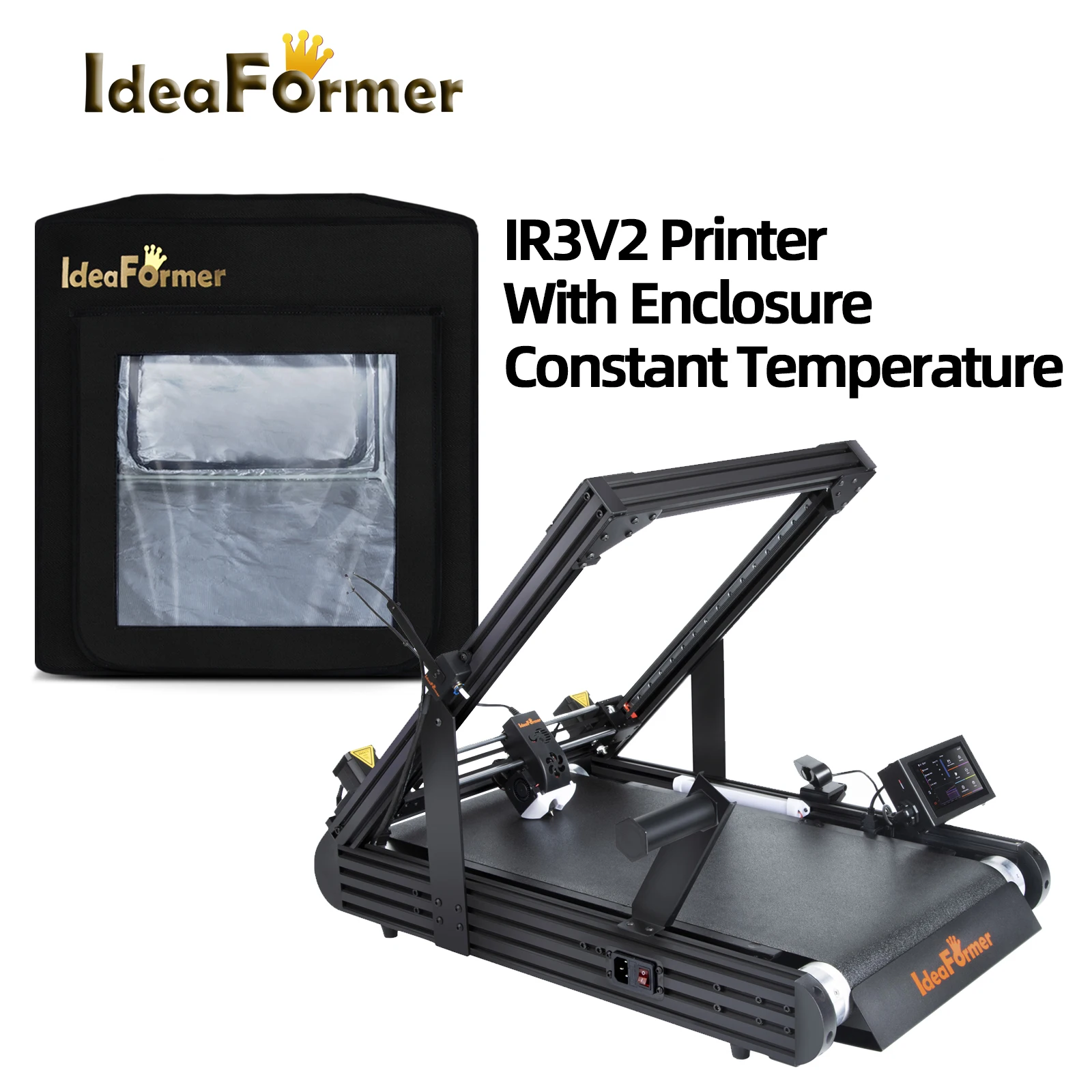

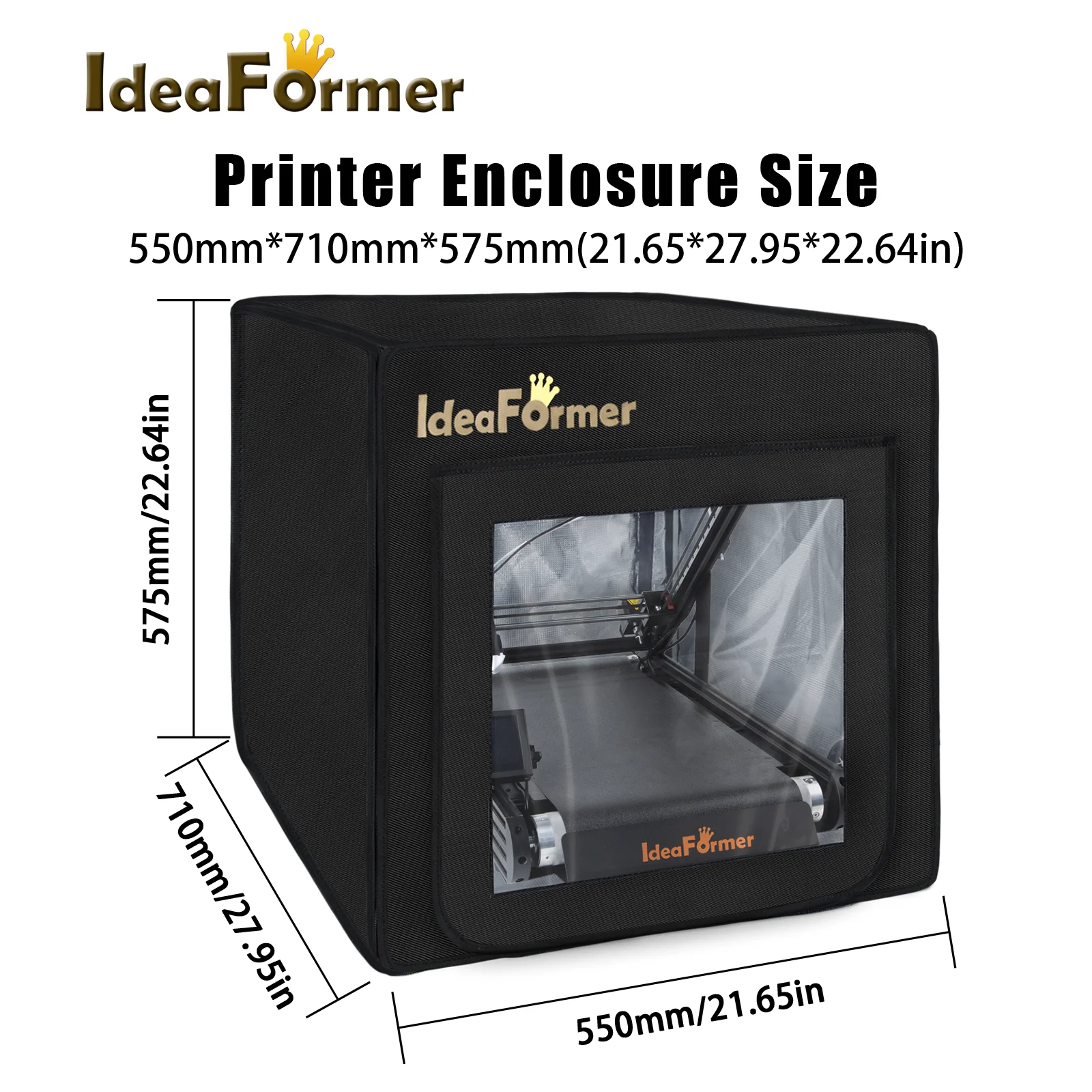

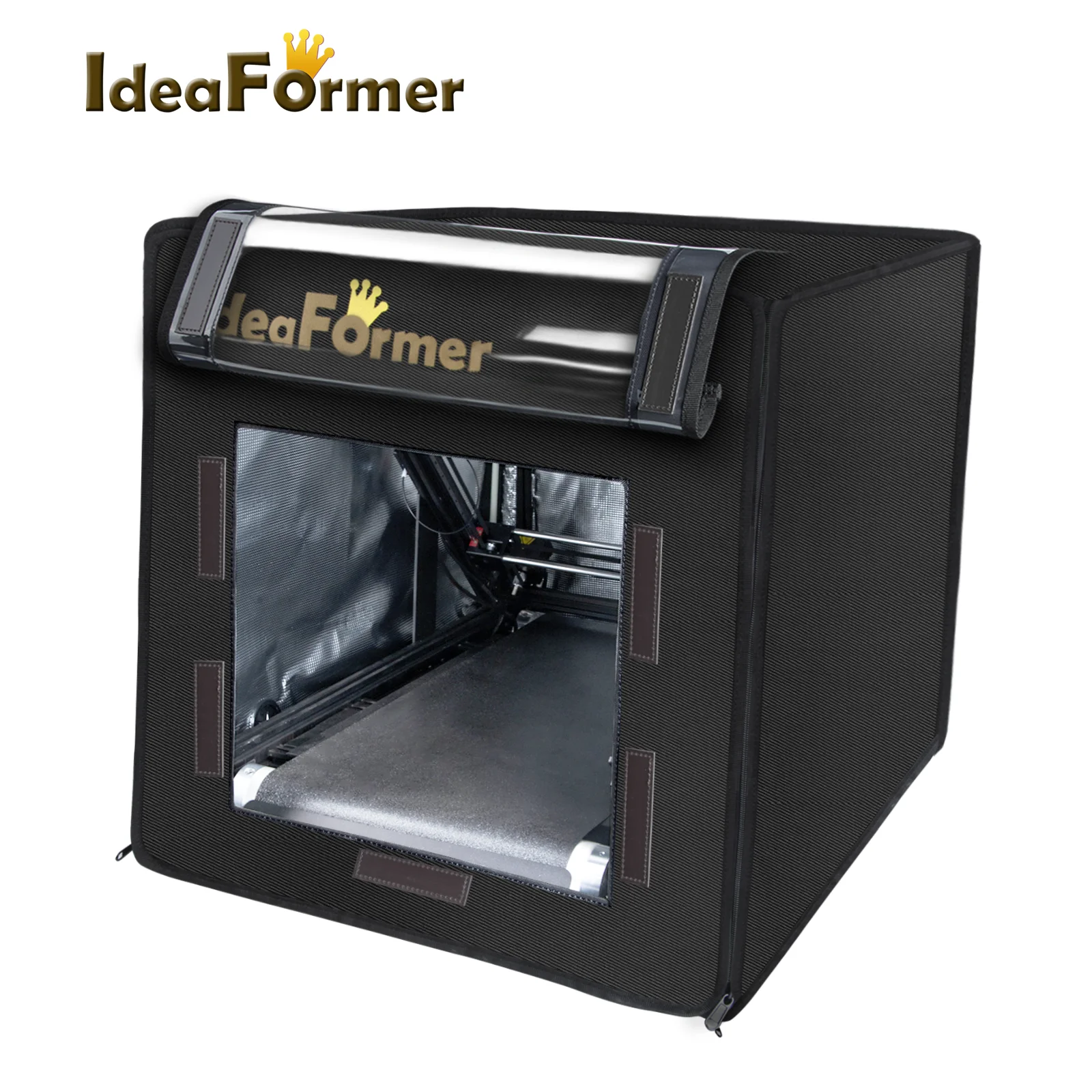

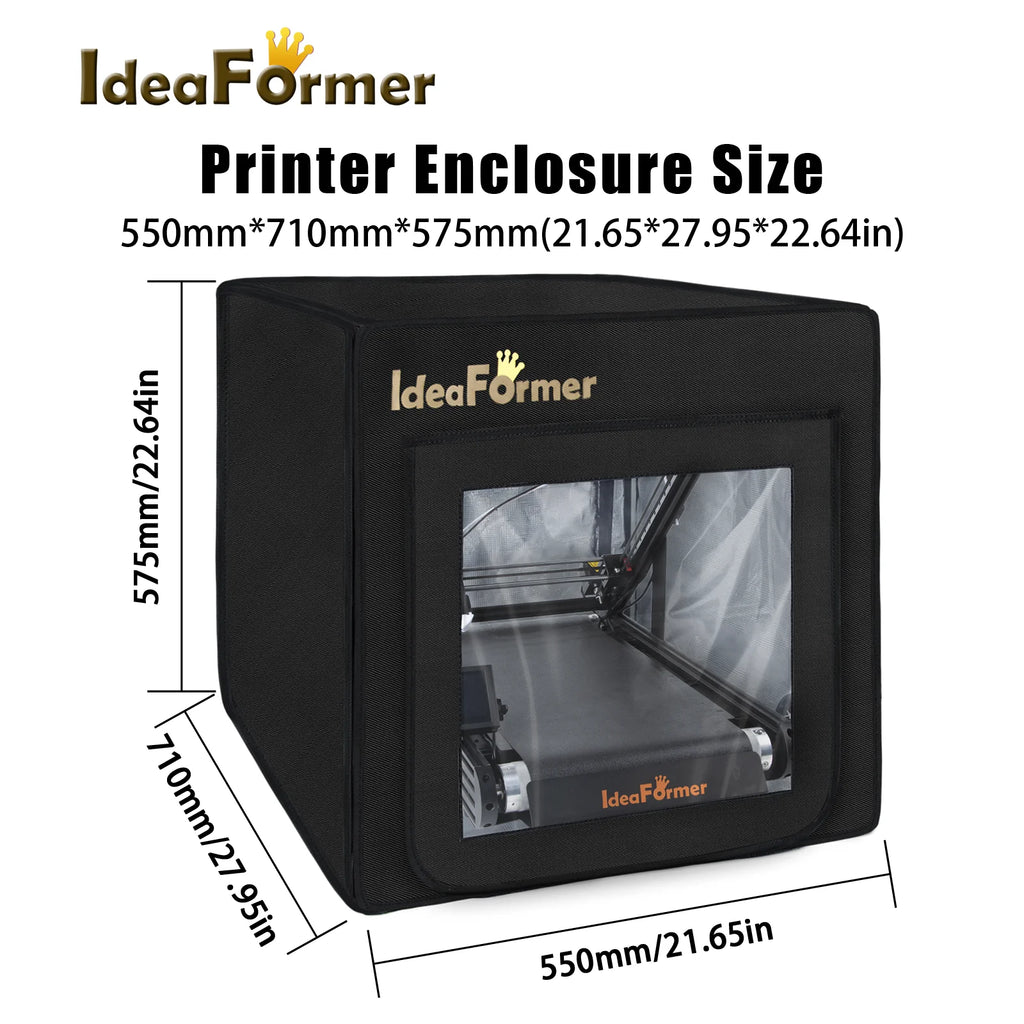

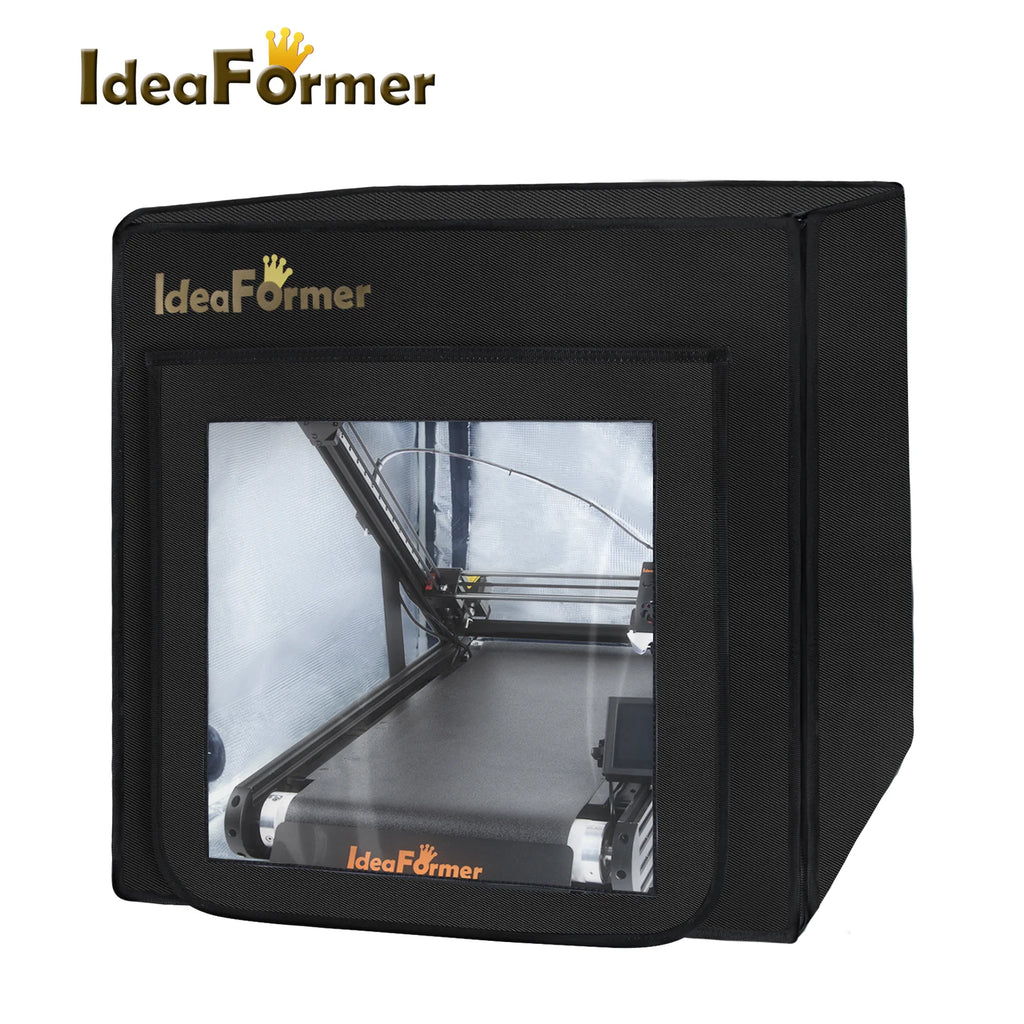

5. Enclosure box. For print high temperature filament, such as abs nylon etc. Keep the model not warp up and crack.

6，Extend roll. For print long model, keep the print side sticker well, and keep the model not bent.

7, Wifi and Camera. It can be remote control by phone or computer, if filament enough, you can keep it working for long time even you are not behind the printer.

8, Led light. You can check the status at mid night.

9, Filament inputting detect. If filament didn't keep going over 12mm, printer will pause printing. Then you need check if there was something wrong with filament or clog the nozzle , or the filament run out. After reload the filament, it can continue to printing.

10,Easy assembly and Stable printing. Base on auto leveling, it sticker very well, metal belt keep models no shaking. All main electronic parts design by ourself, and we use the good conponets on heater, thermister, fans, power supplier etc. After 6 month testing and adjustment, printing is quite stable now. (Print a great model need with a correct slice setting).

IR3V2 Specification
