SPECIFICATIONS

Auto Leveling: Yes

Bed Temp: 90

Brand Name: IdeaFormer

CE Certification: Yes

Certification: CE

Consumables Diameter: 1.75mm

File Format: GCode

Fliament: PLA/PETG/ABS/TPU/Wood.etc

High-concerned chemical: None

IDEAFORMER Model: IR3V2

Interface Type: SD

IsWi-Fi/BluetoothSupport: Yes

Language: English

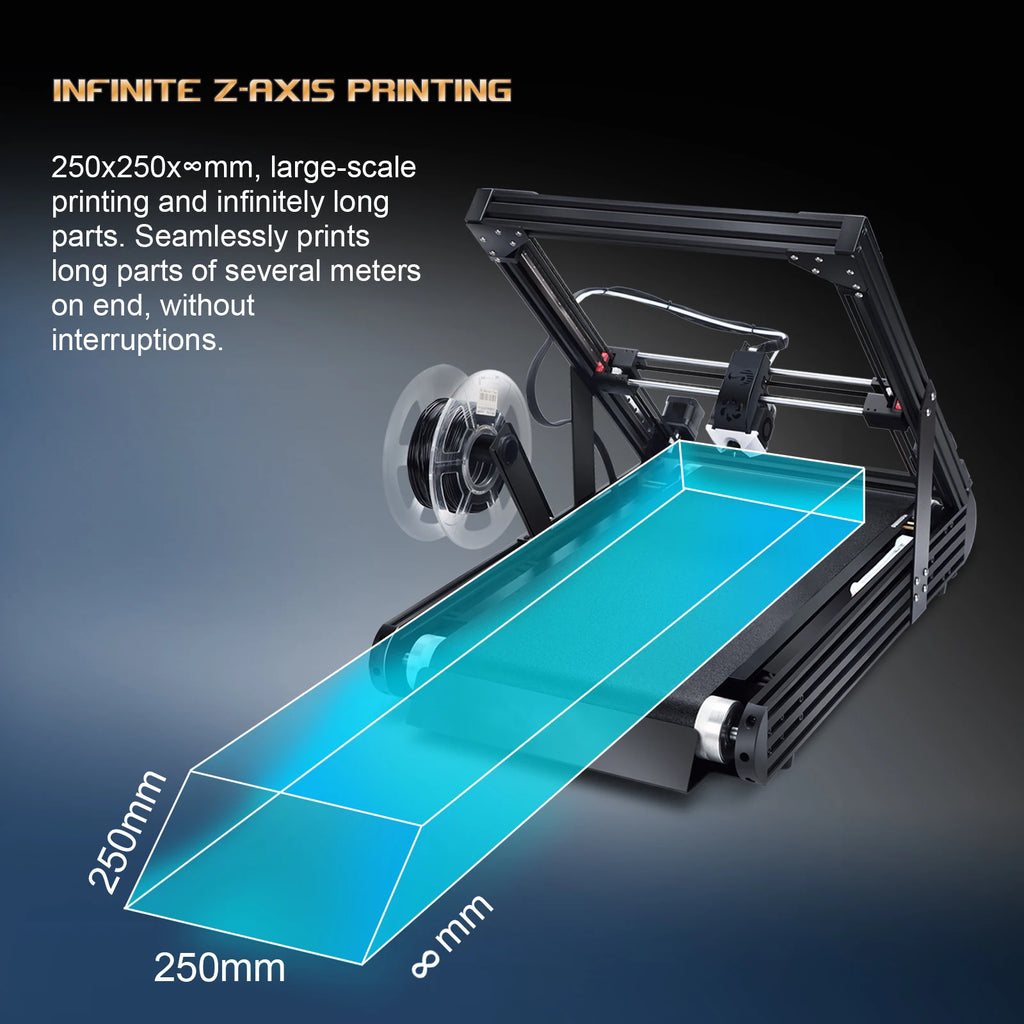

Maximum Print Size: 250*250*unlimited mm

Maximum Printing Speed: 400mm/s

Molding Technology: FDM

Nozzle Diameter: 0.4mm

Operating System: Windows,Linus,Mac

Origin: Mainland China

Power Supply: 110V/220V AC

Precision: ±0.2mm

Printing Speed: 200mm/s

Slice Software: Ideamaker

Slice Thickness: 0.1-0.4mm

Voltage: 110-220V

Wireless Connectivity: Wi-Fi

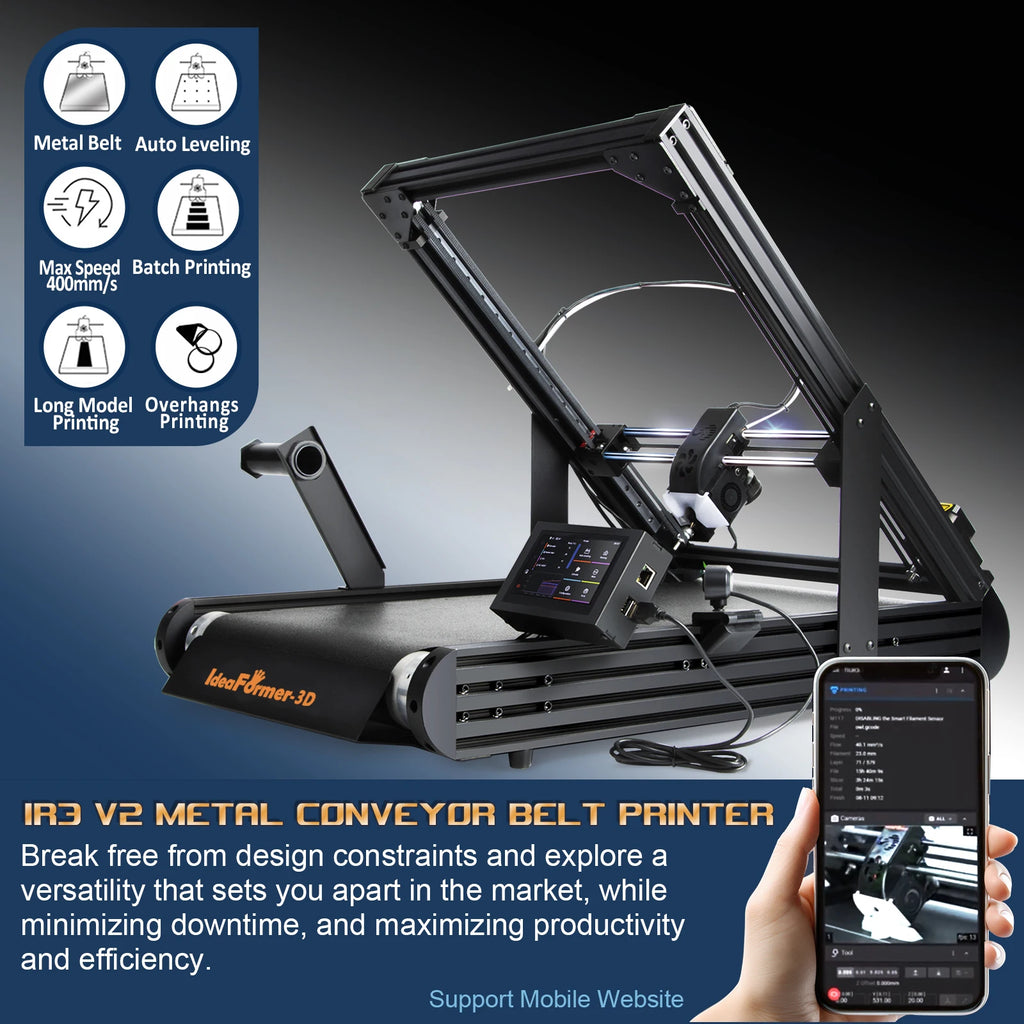

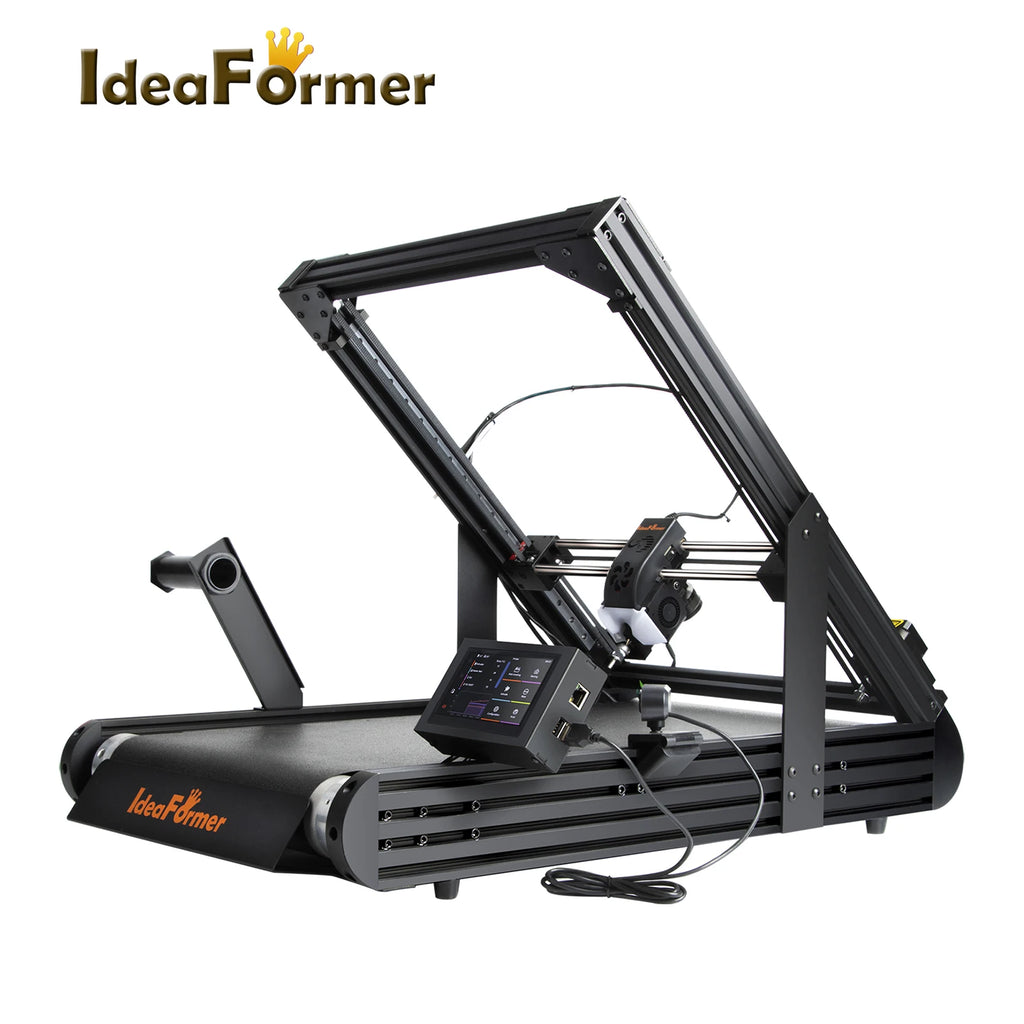

IR3 V2 Belt Printer advantages

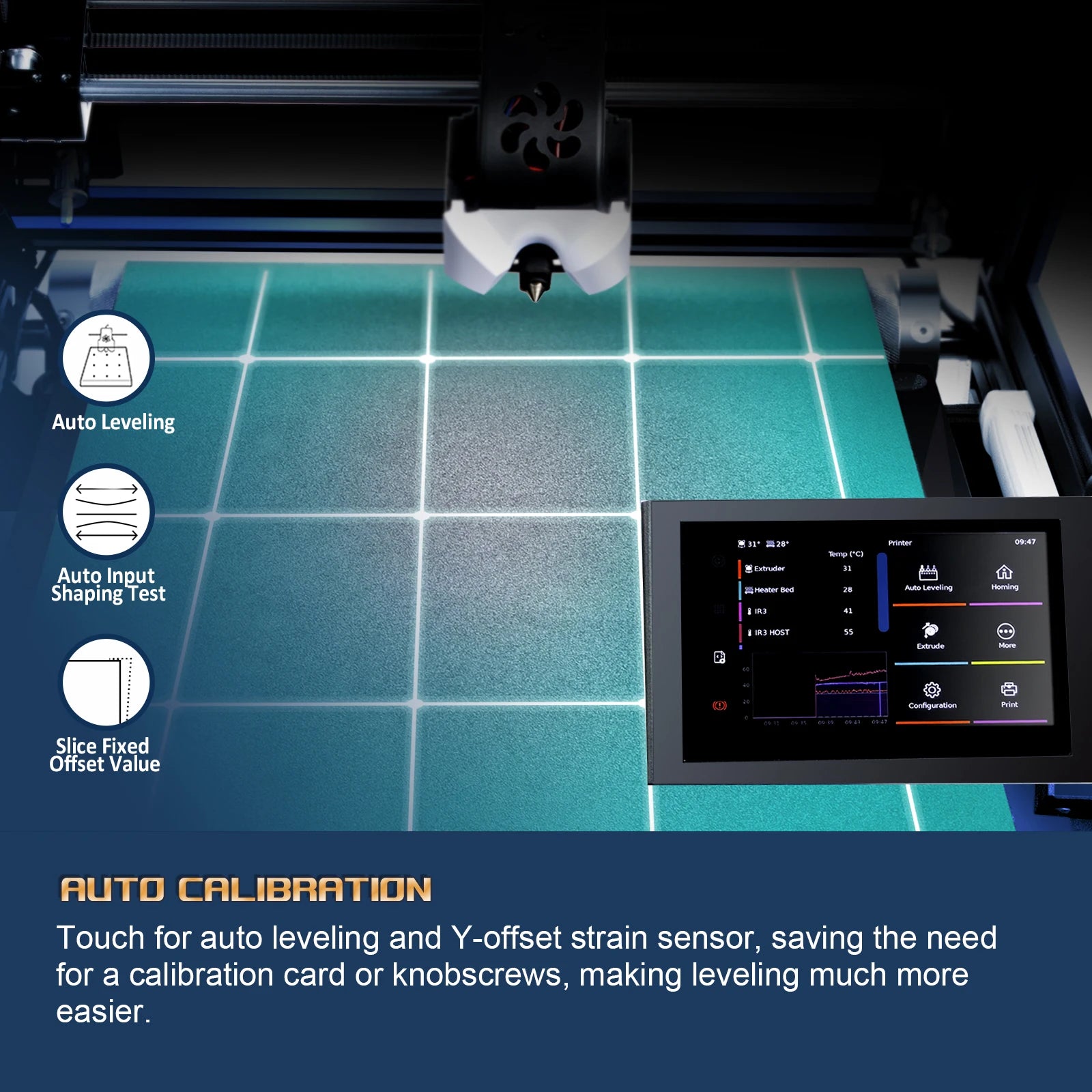

1.100% auto leveling by machine after assembled. Print head with senser , it will detect the distance with the bed platfrom , and matched with the slice setting Y offset -0.1 to -0.2mm , then it will sticker well on the belt .

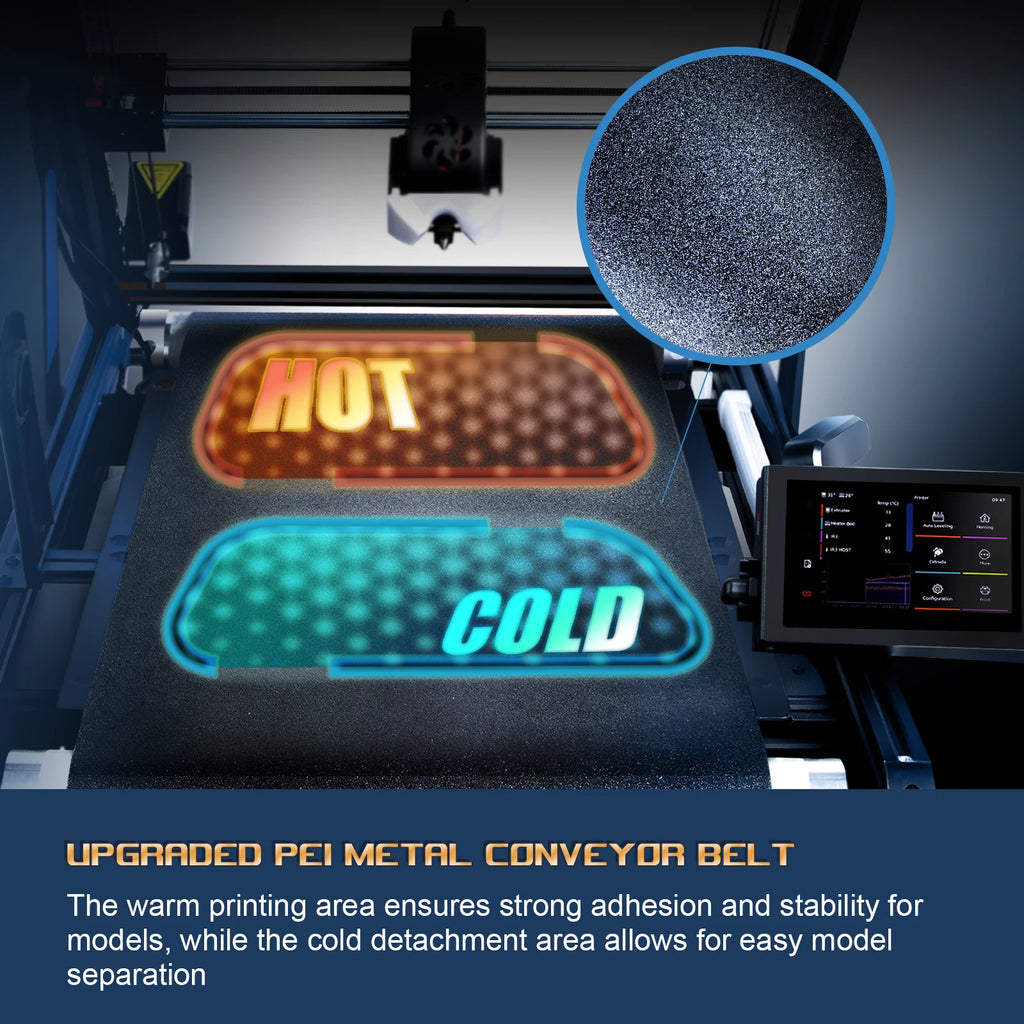

2. Metal conveyor belt , mainly coated with PEI . Printing area is warm , it is good for sticker models on, and it is strong hardness, High models on it will not shaking. Detach model area is cold , it is easy to sepreate the model from the conveyor belt.

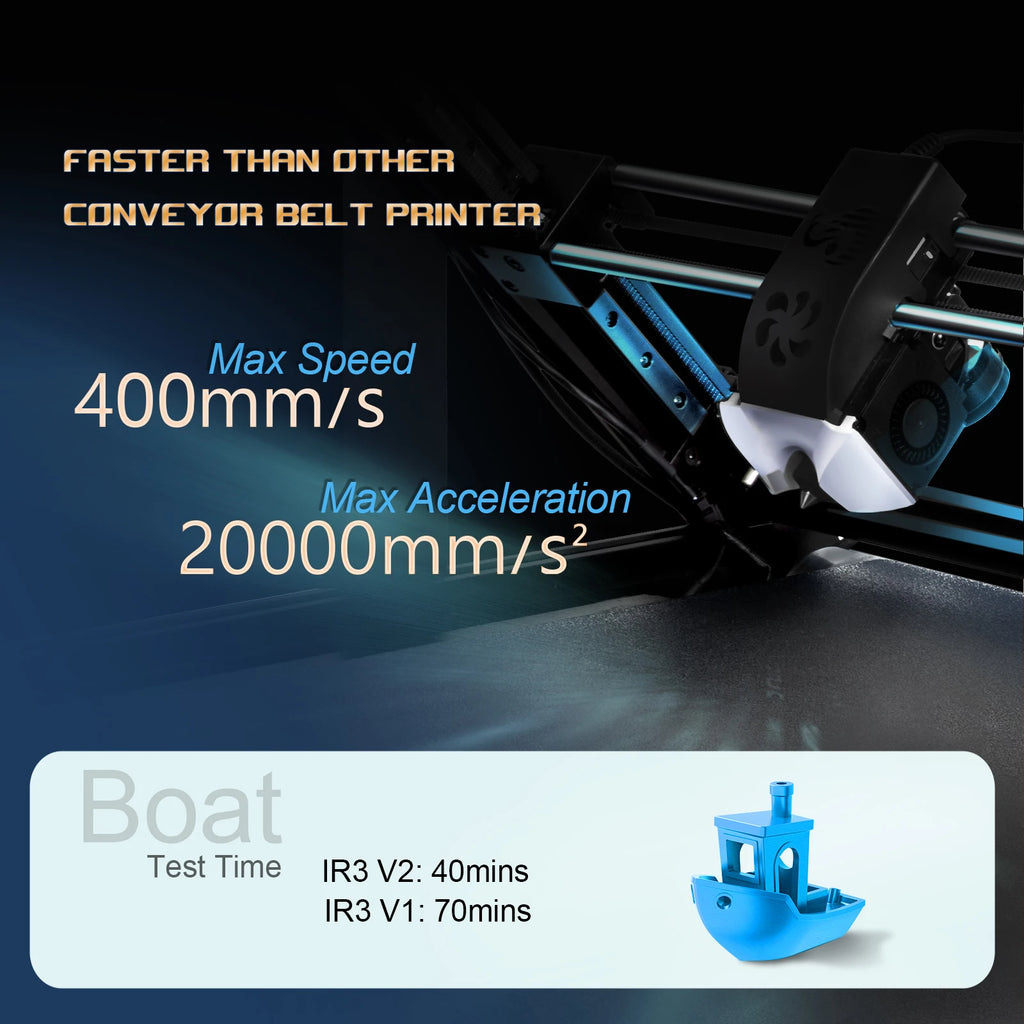

3. Klipper firmware(Fully Open Source)/Fast printing . Pring speed is over 400 + mm/s , Powered by the open-source Klipper system klipper firmware and designed the xy axis move very smooth, z axis is powerful with gearbox and we put it inside the roller.

4. Lost step detect . while printing a model , there have many reasons cause a layer shift/lost step . such as x y z axis moving wrong (dust or something on the moving system by a mistake ); models didn’t sticker well , expecially for this 45 degree printing , each layer need touched the belt ( filament temperature setting wrong, or the models is too complicated and didn’t added support correctly ); print speed too fast , etc . while lost step happened , it may cause the print head hitting the edge of the printer or scratch the belt , with this detect function , printer will stop print while these situation happened . so it can protect the print head and the conveyor belt . then you need check the reason for this lost step .

5. Enclosure box . for print high temperature filament , such as abs nylon etc. keep the model not warp up and crack .

6. Extend roll . for print long model, keep the print side sticker well , and keep the model not bent.

7. Wifi and Camera . It can be remote control by phone or computer, if filament enough , you can keep it wokring for long time even you are not behind the printer.

8. Led light , you can check the status at mid night .

9. Filament inputting detect , if filament didn't keep going over 12mm , printer will pause printing . Then you need check if there was something wrong with filament or clog the nozzle , or the filament run out . after reload the filament , it can continue to printing.

10. Easy assembly and Stable printing . base on auto leveling , it sticker very well, metal belt keep models no shaking.

IR3 V2 specification
